Octans 300A Cygnus
Updated: Aug 31, 2020

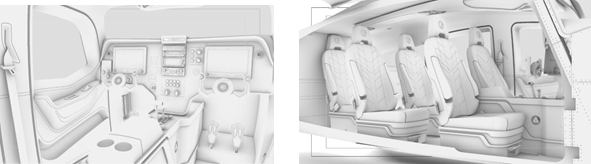

OSORIO Engenharia was the responsible by design conception, lofting and modeling on CATIA of all interior parts of Octans 300 A, including:
- yoke covers;
- ceiling, side and front panels;
- seats fairings and snack tables;
- doors internal finishings;
- definition of all attachment devices and fasteners.
The activity was performed in a very short time.
OSORIO was contracted by ALLTEC Composites.
Merely illustrative pictures.
